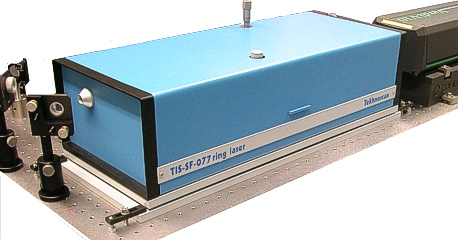

CW single-frequency ring Ti:Sapphire laser, model "TIS-SF-077"

Ti:Sapphire laser

TIS-SF-077 (265 kB)

CW single-frequency Ti:Sapphire laser with frequency stabilisation, model TIS-SF-077, opens up new horizons in super-fine wavelength-selective action on objects of investigation. The output linewidth of this laser does not exceed 50 kHz rms and may be further reduced (up to 2-3 kHz rms in TIS-SF-777 laser) upon a custom order. Laser TIS-SF-077 features exceptionally low generation line drift: less than 40 MHz/hour. This remarkably small figure is guaranteed by a superb thermal isolation and stabilization of the reference interferometer and its special design.

Output spectral range of TIS-SF-077 is 695-1050 nm and the range can be extended into the blue and UV regions (350-525 nm) with the efficient resonant frequency doubler (model FD-SF-07) by Tekhnoscan, which is optionally shipped with the TIS-SF-077 laser.

Applications: atom cooling, trapping, and quantum manipulation, high resolution spectroscopy including laser trapping spectroscopy, Bose-Einstein condensation, atom trap trace analysis, atomic clocks, formation of cold molecules, nanotechnology (nanostructure fabrication etc.).
